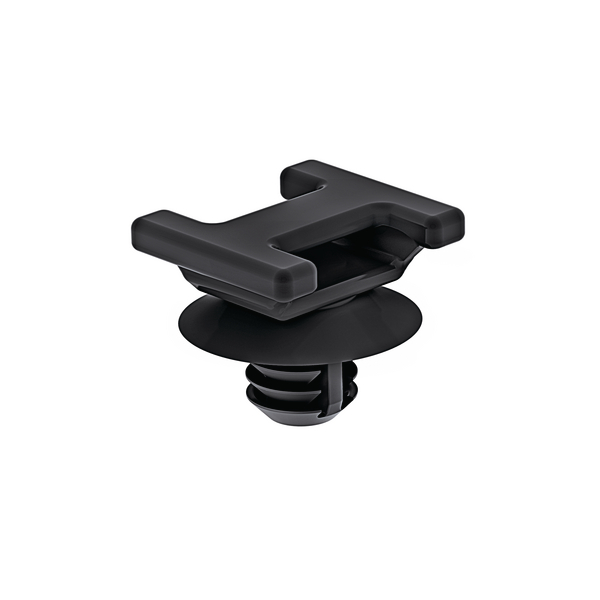

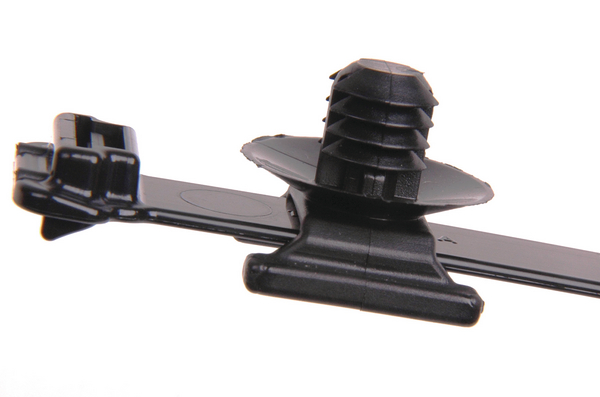

Lanières assemblées à pied sapin FT9, avec jupe
Article 156-00068
| WSSFT9A-PA66HIRHSUV-BK
|
Détails
- Lanières faciles à installer à la main et sans outil, par simple enfoncement dans un trou prévu à cet effet
- Présence d'une jupe minimisant les risques d'infiltration de poussières, salissures et eau
- Design en pied sapin pour une large plage d'épaisseurs de support
- Lanières adaptées aux trous taraudés
- Pied sapin amovible le long de la bande du collier
Demander un devis
Voir le reste de la gamme:
Application | Conçues à l'origine pour la fixation des faisceaux automobiles, ces lanières ont trouvé place dans de nombreuses autres applications telles que l'aéronautique, l'electromécanique, l'electroménager.... |
Contenu | 100pcs |
Couleur | Noir (BK) |
Description | Crantage intérieur |
Famille de produits | Lanières assemblées à pied sapin, avec jupe, pour trous ronds |
GLOBAL PART DESCRIPTION | WSSFT9A-PA66HIRHSUV-BK |
Matière | Polyamide 6.6, modifié chocs, haute température, stabilisé UV (PA66HIRHSUV) |
Matière du collier | Polyamide 6.6, modifié chocs, haute température, stabilisé UV (PA66HIRHSUV) |
Matière du pied | Polyamide 6.6, modifié chocs, haute température, stabilisé UV (PA66HIRHSUV) |
Nom du produit | Lanières assemblées à pied sapin FT9, avec jupe |
Nombre de côtés pour la fixation du collier | 2 |
Outil(s) de pose | ProCut 9 no battery, MK9P, MK9P w/ Upper air, MK21, EVO7SP, EVO7i, EVO7iSP, EVO9, EVO9HT, EVO9i, EVO9iHT |
Qté par | sachet |
Surface d'inscription | Aucun |
Type de fixation | Pied sapin |
Type de tête de fermeture | Cliquet en plastique |
Diamètre du toron (métrique) | 57.0mm |
Epais. max. paroi | 1.0 - 6.5mm |
Haut. (H) | 19.10mm |
Haut. (H2) | 9.0mm |
Larg. W | 12.7mm |
Larg. W2 | 13.0mm |
Long. (L) | 228.0mm |
Packaging PL0 - Poids (kg) | 0.006619kg |
Pour panneau d'épaisseur min. - max. | 1 - 6.5 mm |
Pour panneau d'épaisseur min. - max. | 0 - 0.3 " |
Résistance à la traction en | 535N |
∅ de la jupe | 21.6mm |
∅ max. du toron | 57.0mm |
∅ trou de fixation (FH) | 8.7 - 9.2 mm |
|
|
Code douanier | 39269097 |
EAN13 / GTIN13 | 4031026414188 |
Packaging PL1 - Hauteur (m) | 0.07m |
Packaging PL1 - Largeur (m) | 0.33m |
Packaging PL1 - Longueur (m) | 0.24m |
Packaging PL1 - nature/type | sachet |
Packaging PL1 - Poids (KG) | 0.661901kg |
Packaging PL1 - Quantity | 100 |
Packaging PL1 - Volume (m³) | 0.00554m³ |
Packaging PL3 - Hauteur (m) | 0.238m |
Packaging PL3 - Longueur (m) | 0.619m |
Packaging PL3 - nature/type | carton |
Packaging PL3 - Poids (KG) | 3.909505kg |
Packaging PL3 - Quantité | 500 |
Packaging PL3 - Volume (m³) | 0.0603m³ |
Packaging PL3- Largeur (m) | 0.409m |
Packaging PL4 - Hauteur (m) | 1.096m |
Packaging PL4 - Longueur (m) | 1.2m |
Packaging PL4 - nature/type | Palette |
Packaging PL4 - Poids (KG) | 52.276kg |
Packaging PL4 - Quantité | 4000 |
Packaging PL4 - Volume (m³) | 1.052m³ |
Packaging PL4- Largeur (m) | 0.8m |
Pays d'origine | US |
